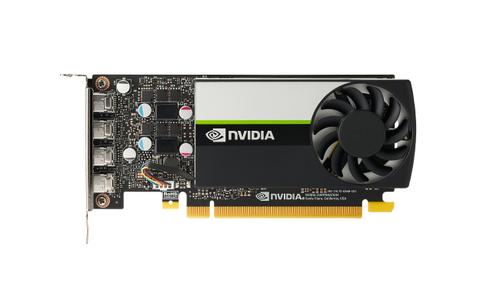

HP NVIDIA T1000 4GB 4mDP GFX w/2 mDP to DP Adapter
Du må logge inn for å handle/se priser.
|
HP NVIDIA T1000 4GB 4mDP GFX w/2 mDP to DP Adapter
-
GPU-familie
NVIDIA
-
GPU
T1000
-
Grensesnitt
PCI Express 3.0
-
Videominne
4GB
-
Videominnetype
GDDR6
-
Minnebussbredde
128 bit
-
DVI
0
-
VGA
0
-
HDMI
0
-
Displayport
4
-
USB-C
0
-
Profile
Lav
-
Kjøletype
Aktiv
|
Beskrivelse
Spesifikasjoner
T1000
Features:
- Turing GPU Architecture
- Based on state-of-the-art 12nm FFN (FinFET NVIDIA) high-performance manufacturing process customized for NVIDIA to incorporate 896 CUDA cores, the NVIDIA T1000 GPU is the most powerful low-profile single slot professional solution for CAD, DCC, financial service industry (FSI) and visualization professionals in general looking to reach excellence performance in a compact and efficient form factor. The Turing GPU architecture enables the biggest leap in computer real-time graphics rendering since NVIDIA’s invention of programmable shaders in 2001.
- Advanced Shading Technologies
- The Turing GPU architecture features the following new advanced shader technologies.
Mesh Shading: Compute-based geometry pipeline to speed geometry processing and culling on geometrically complex models and scenes. Mesh shading provides up to 2x performance improvement on geometry-bound workloads.
- Advanced Streaming Multiprocessor (SM) Architecture
- Combined shared memory and L1 cache improve performance significantly, while simplifying programing and reducing the tuning required to attain best application performance. Each SM contains 96 KB of L1 shared memory, which can be configured for various capabilities depending on compute or graphics workload. For compute cases, up to 64KB can be allocated to the L1 cache or shared memory, while graphics workload can allocate up to 48 KB for shared memory; 32 KB for L1 and 16KB for texture units. Combining the L1 data cache with the shared memory reduces latency and provide higher bandwidth.
- High Performance GDDR6 Memory
- Built with Turing’s vastly optimized 4GB GDDR6 memory subsystem for the industry’s fastest graphics the NVIDIA T1000 features 4 GB of frame buffer capacity and 160 GB/s of peak bandwidth for double the throughput from previous generation. NVIDIA T1000 is the ideal platform for 3D professionals working with larger models and datasets and multi display environments.
- Single Instruction, Multiple Thread (SIMT)
- New independent thread scheduling capability enables finer-grain synchronization and cooperation between parallel threads by sharing resources among small jobs.
- Mixed-Precision Computing
- With independent parallel integer and floating-point data paths, the Turing SM is more efficient on workloads with a mix of computation and addressing calculations.
- Compute Preemption
- Preemption at the instruction-level provides finer grain control over compute tasks to prevent long-running applications from either monopolizing system resources or timing out.
- H.264 and HEVC Encode/Decode Engines
- Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with two dedicated H.264 and HEVC encode engines and a dedicated decode engine that are independent of 3D/compute pipeline.
- NVIDIA GPU BOOST 4.0
- Automatically maximize application performance without exceeding the power and thermal envelope of the card. Allows applications to stay within the boost clock state longer under higher temperature threshold before dropping to a secondary temperature setting base clock.
Specifications:
- CUDA Cores 896
- GPU Memory 4 GB GDDR6
- Peak FP32 Performance 2.50 TFLOPS
- Memory Interface 128-bit
- Memory Bandwidth 160 GB/s
- Max Power Consumption 50 W
- System Interface PCI Express 3.0 x16
- Display Connectors 4x mDP
- Max Digital Resolution 7680 x 4320 at 60 Hz
- Max Displays 4x at 5K | 5120 x 2880 at 60 Hz
- HDR Support Yes
- Quad Buffered Stereo Yes
- NVENC | NVDEC 2x H.264 and HVEC Encoders, 1x Decode Engine
- Form Factor Low-Profile Single Slot
- Thermal Solution Active Fansink
Grafikkprosessorfamilie | NVIDIA |
Grafikkprosessor | T1000 |
Maksimal oppløsning | 7680 x 4320 piksler |
CUDA | Ja |
CUDA-kjerner | 896 |
Støtter parallellprosesseringsteknologi | Støttes ikke |
Maksimalt antall skjermer per videokort | 4 |
Diskret grafisk adapter hukommelse | 4 GB |
Minnetype for grafikkort | GDDR6 |
Minnekapasitet | 128 bit |
Båndbredde minne (maks.) | 160 GB/s |
Type grensesnitt | PCI Express x16 3.0 |
Antall mini DisplayPorts | 4 |
DisplayPort-versjon | 1.4 |
Innebygd TV-mottaker | Nei |
DirectX-versjon | 12.0 |
Modellversjon skyggegiver | 5.1 |
OpenGL-versjon | 4.6 |
HDCP | Ja |
Dual Link DVI | Nei |
Form for nedkjøling | Aktiv |
Antall vifter | 1 vifter |
Braketthøyde | Low-Profile (LP) |
Antall slots/porter | 1 |
Strømforbruk (maks.) | 50 W |
Vekt | 130 g |
Lengde | 156 mm |
Høyde | 69 mm |
Pakkebredde | 653 mm |
Pakkedybde | 251 mm |
Pakkehøyde | 210 mm |
Pakkevekt | 340 g |
Harmonisert system (HS)-kode | 84733020 |
